The following example shows the C30Z Ozone Monitor attached to an Ozone Generator through the generator EXT port.  This provides a hardware link which is designed to DE-ACTIVATE (stop) the ozone production of any OzoneLab™ instrument if the monitor will detect pre-set ozone level in the air.

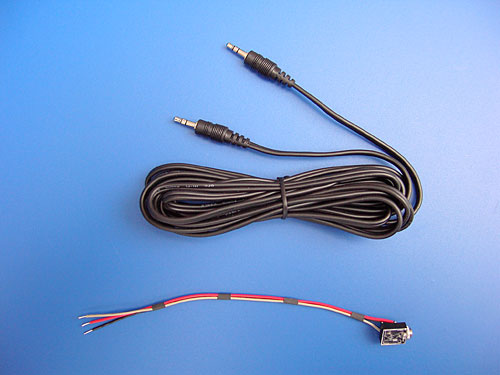

EXT Port Cable & C-30Z Upgrade Port OzoneLab™ EXT. Port Cable + C-30Z Upgrade Port.

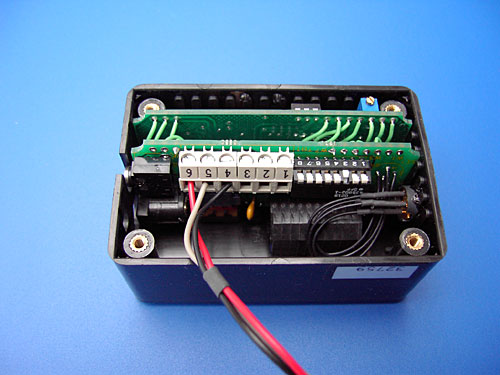

Upgrade port connected to terminal Upgrade port connected to terminal.
• Black --> #4 Terminal
• Gray --> #5 Terminal
• Red --> #6 Terminal

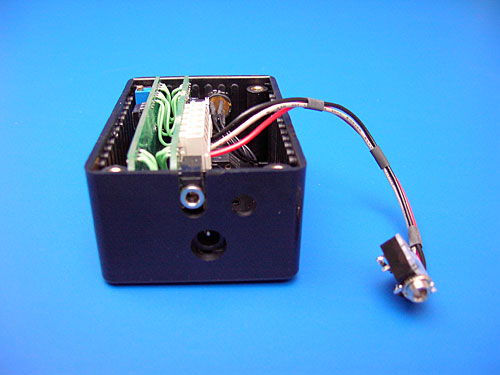

Side View of wires and connector Side View of wires and connector.

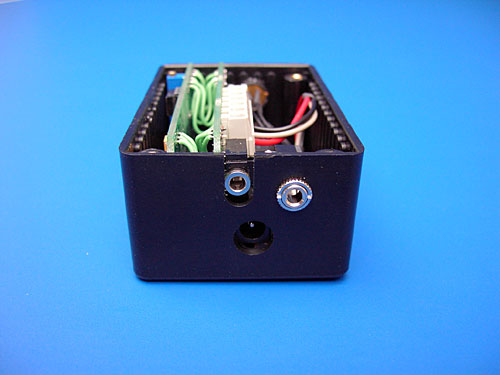

Side View of connector installed Side View of connector installed.

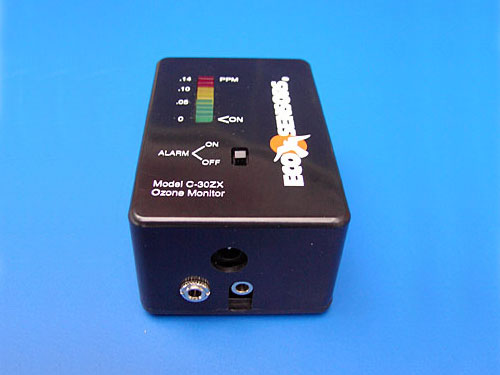

Side view of closed unit Side view of closed unit with no cords/cables attached.

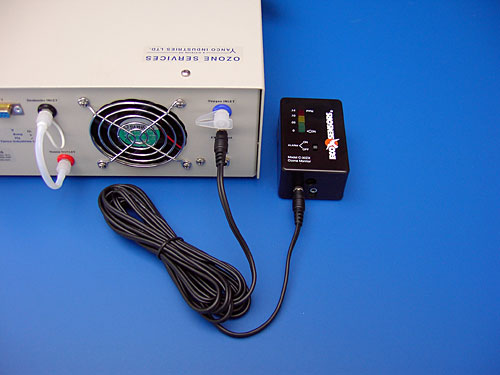

Connected to instrument Please Note:
Accidental connection of EXT. port link into C-30Z data logging port may result in damage of the data logging/analog output from C-30Z.
