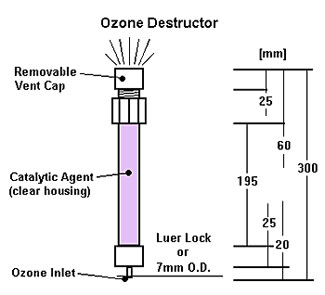

The
OzoneLab™ Ozone Destructor is the last connection used in many applications.
When ozone is passed through the destructor, it neutralizes the ozone
into oxygen.
- 12" Long
/ DIM 1/2" cartridge
- Granulated
filling / Ozone is eliminated by catalytic reaction.
- "OZONE-IN" 1/8" barbed
fitting
Important
note:
Ozone Destructor granulated filling is NOT BASED ON CARBON!!!
Never replace with charcoal!!!
Operation
Limits for "Standard" OzoneLab™ Ozone Destructors: |
Maximum Flow Rate: |
2LPM |
Maximum Ozone Destruction Capacity: |
3000mg/hr |
Maximum Ozone Concentration: |
200mg/l (14% by weight O3 in O2) |
Temperature: |
10-40 C |
Pressure: |
0-30 psi |
Humidity: |
0-75% RH |
Ozone
Services is able to provide custom made ozone destructors - please contact
us for more information.
Vented Cap |

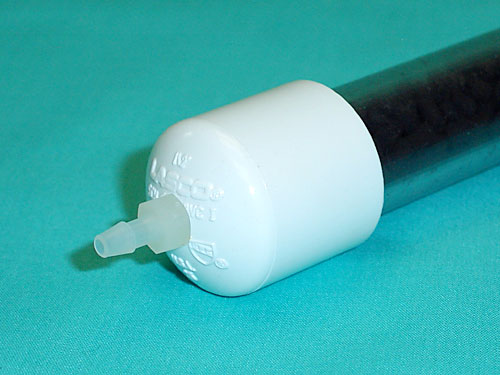

Ozone Inlet
(1/8" barb fitting) |

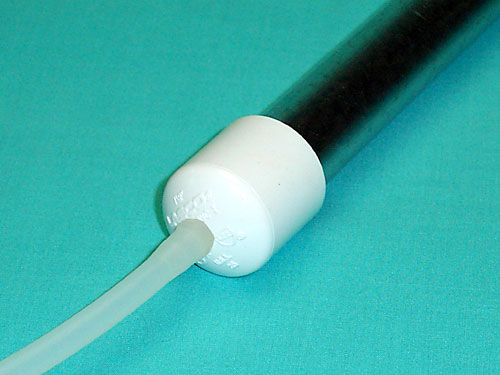

Ozone Inlet with attached ozone tubing |

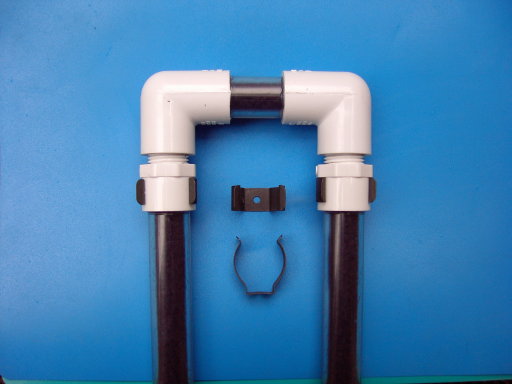

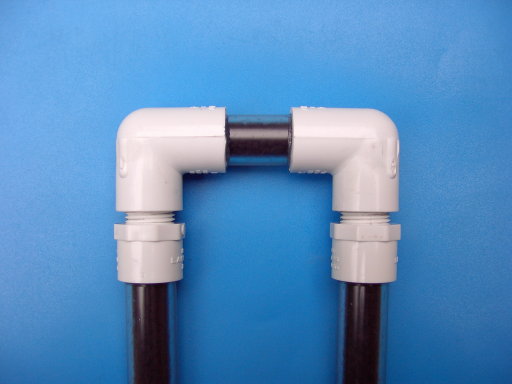

Custom Destructor Example
The below pictures illustrate how clients can double the capacity
of our standard Ozone Destructor. Please contact
us for more details.
|
