Oxygen and Ozone Manifold
[OM-12/2 x 1/8"-O]

Technical Specification:
Material: Pyrex
Number of Ports: 12 + 2
Size of the Ports: for 1/8" ID tubing (+ olive)
Length of the Ports: 1/2" (12mm)
Body Diameter: 1/4" (7mm)
Length: 14-1/2" (365mm)
Width: 1-3/8" (42mm)
Input Flow: 1LPM

Oxygen and Ozone Manifold
[OM-7/2 x 1/4"]

Technical Specification:
Material: Pyrex
Number of Ports: 7 + 2
Size of the Ports: for 1/4" ID tubing (no olive)
Length of the Ports: 1/2" (12mm)
Body Diameter: 3/8" (10mm)
Length: 8-3/4"" (222mm)
Width: 1-1/4" (32mm)
Input Flow: 5LPM

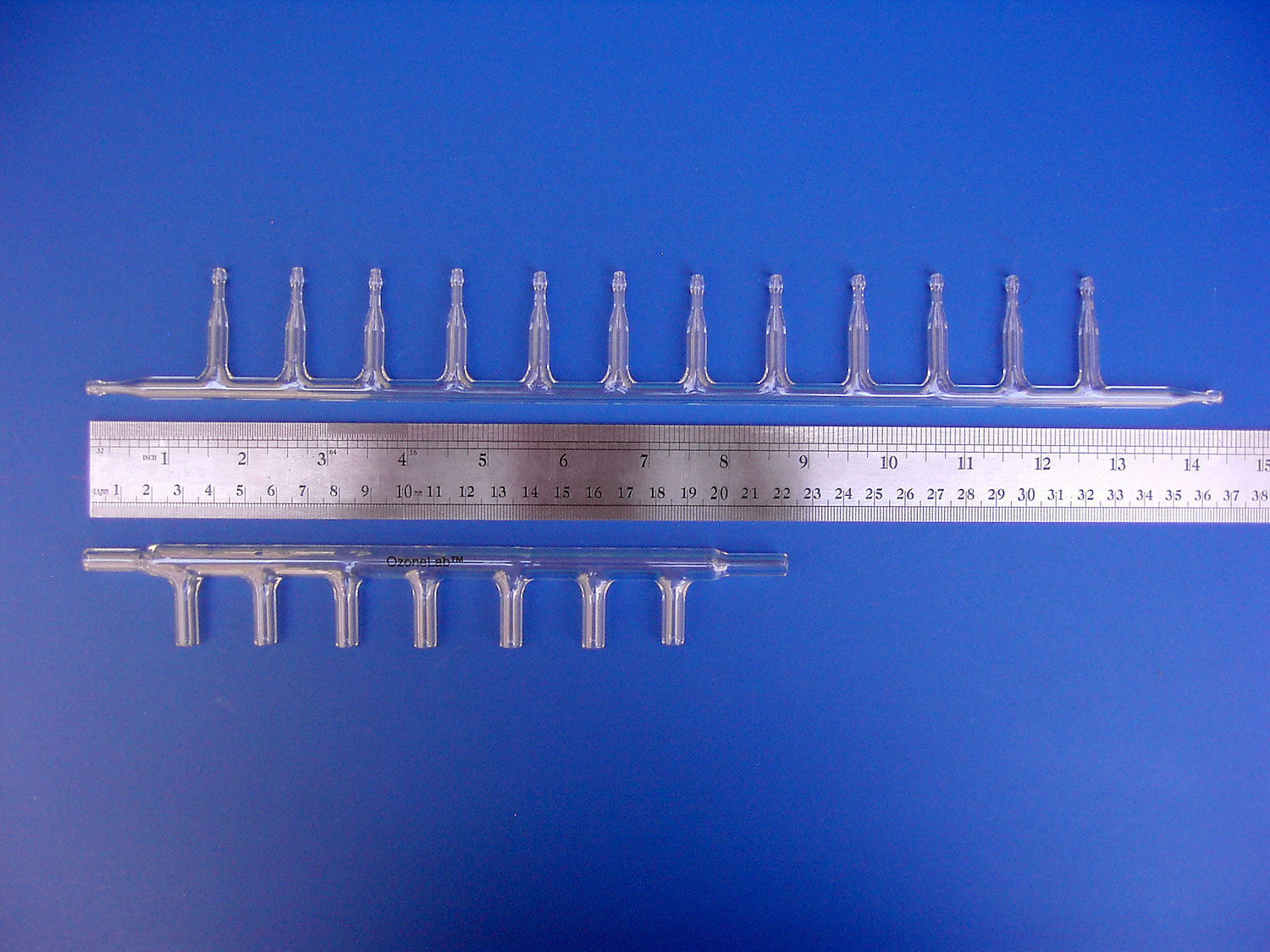

Larger Picture
375x500

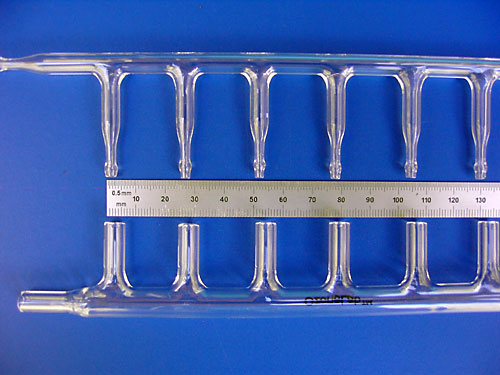

Larger Pictures
375x500 | 1125x1500

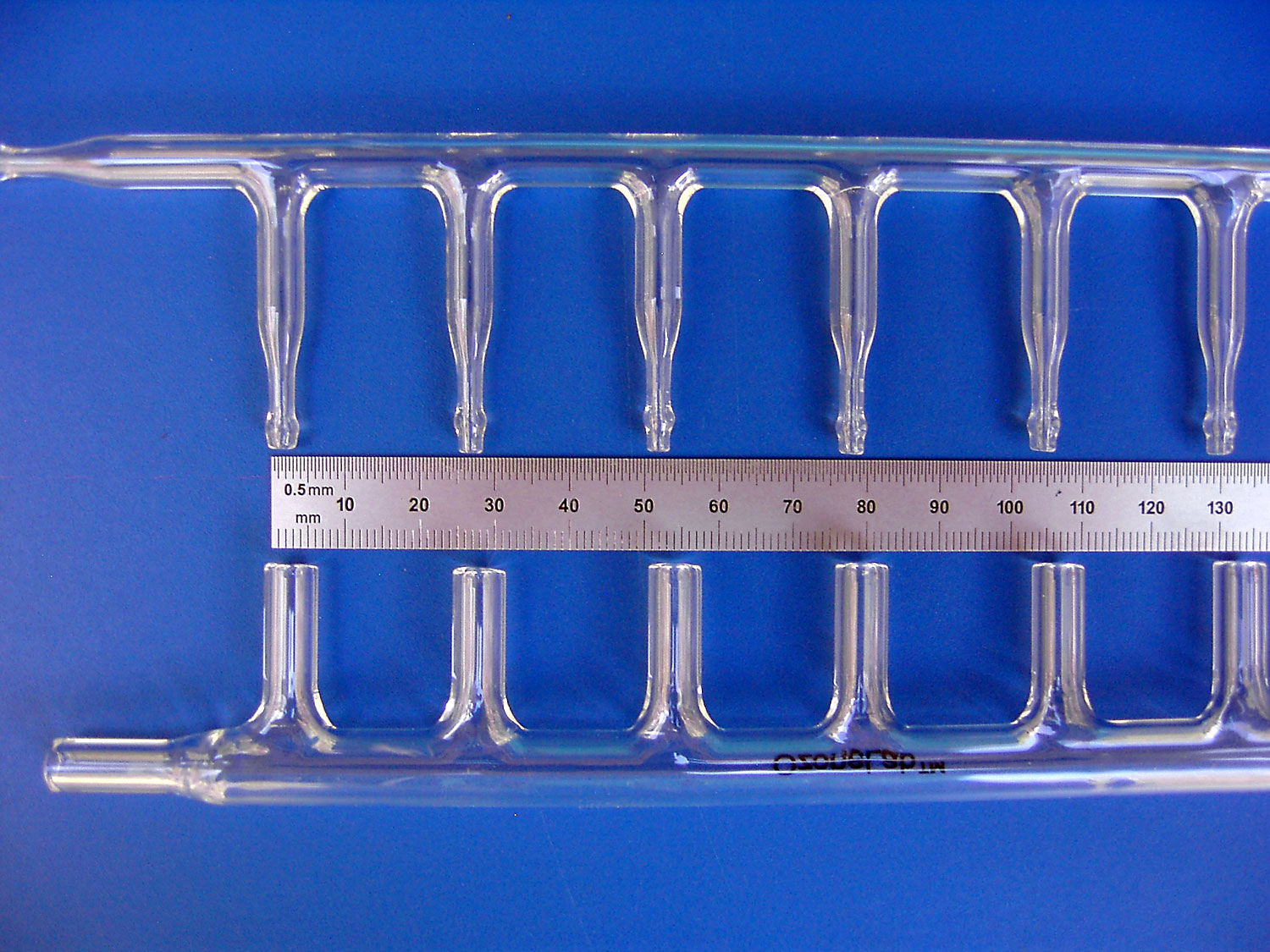

Larger Pictures
375x500 | 1125x1500


Highlighted manifolds are regular stock item.

Feel free to contact us if you need custom produced manifold(s). Do not forget to specify in your e-mail technical specifications (as outlined above).
