The versatility of OLW design allows the use of this product for wide variety of OEM applications. However, the main driving force behind the inclusion of Wire-Less Control unit & hardware to our OzoneLab™ line of products is to increase the versatility of our instruments. The following are simple examples of a remote control of three functions, which can be easily executed using OzoneLab™ OLW modules:

  • Main Power ON/OFF
  • Ozone production ON/OFF
  • Syringe port ON/OFF
  • Etc.

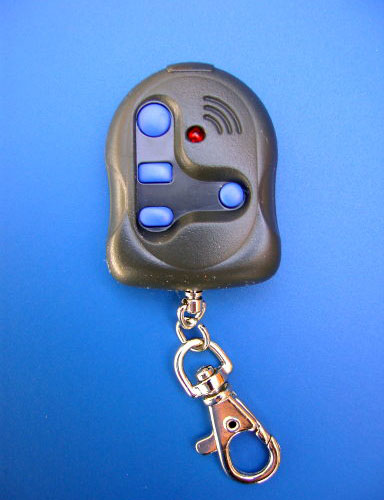

OLW - Transmitter Module

  • Number of channels: 4
  • Operation Range: up to 50FT, 75FT in open area
  • Operation Frequency: 433.9MHz
  • Power Requirement: Internal 12VDC battery
  • Enclosure: hand-held, "key-chain" style

OLW - Receiver Module

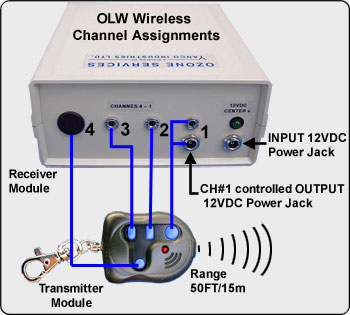

  • Factory settings of 4 channels:
    • #1
      • #1-A 2.1mm jack, Center positive, 2A, "NO" (Normally Open)
      • #1-B 3.5mm jack, Stereo, 100mA, "NO"
    • #2 3.5mm jack, Stereo, 100mA, "NO"
    • #3 3.5mm jack, Stereo, 100mA, "NO"
    • #4 customer select, 10Amp - SPDT relay
  • Control Function: latching or momentary (client select)
  • Operation Range: up to 50FT, 75FT in open area
  • Operation Frequency: 433.9MHz
  • Power Requirement: 12VDC / 150mA
  • Size 135x 135x 60mm / 5.25x 5.25x2.5" (WxLxH)
  • Weight: 300gr. / 0.75Lbs

OLW - Cables & Power Supply

  • Cables:
    • Standard: 3.5mm M/M plug, Stereo, 6FT
    • Optional: 3.5mm M/M plug, Stereo, 12Ft
    • Optional: extensions, "Y" splitters, etc.
  • Power Supply:
    • Standard: OzoneLab™ Power Adapter
    • Optional: 2.1mm M/M plug, Center Positive, 2FT

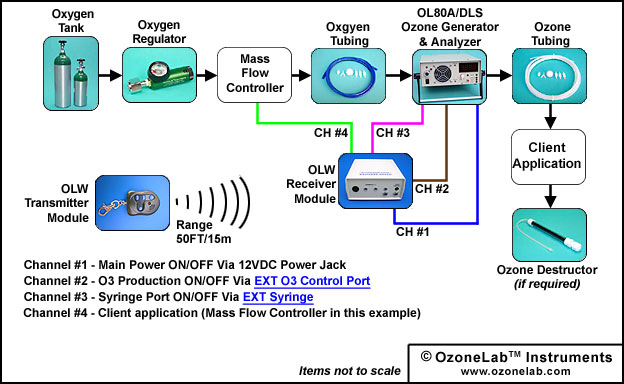

Setup Example
Ozone Tubing OL80A/DLS Ozone Generator/Analyzer Ozone Destructor Oxygen Tanks Oxygen Regulator Oxgyen Tubing
