Luer Lock Protective Caps

All Luer Lock fittings on OzoneLab™ Ozone Generators and Analyzers are made of ozone resistant Kynar® and come standard with removable reusable protective caps.

Luer Lock Protective Cap in closed position Luer Lock Protective Cap in open position Luer Lock Protective Cap in open position with ozone tubing attached Luer Lock Protective Cap in open position with filter & syringe attached Luer Lock Protective Cap removed (can be easily re-attached)

Important notes:

  • Protect the equipment against excessive vibrations, heat, dust and humidity.
  • Protect the equipment against the back-flow of water and/or any other liquids & gases.
  • Be very gentle with all fittings/connectors. Using excessive force will result in complications of removing/disconnecting the connectors, or even breaking the connectors (not covered by a warranty)

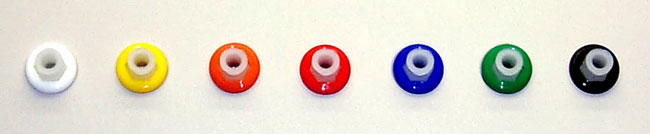

Panel Fittings Color Coding Information


The above colors are used by Ozone Services for intensification of individual gas ports:

Standard Color Coding Identification:

Blue Oxygen INLET
Yellow   Ozone INLET
Black   Ozone Destructor INLET
Red   Ozone OUTLET



The following colors are used only if needed
(for special custom applications)

  • White
  • Orange
  • Green
