Please Note: We have discontinued our GE Product Line of Ozone Generators (GE30 & GE60). The GE60/FMxx has been replaced by the OL80W/FMxx which is a more energy efficient product with better performance and increased versatility (EXT port).

Sample Ozone Output Test Report

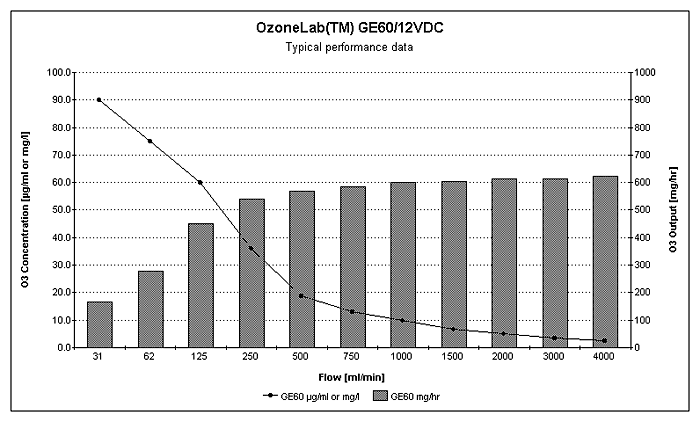

Ozone Concentration [µg/ml] versus Ozone Output [mg/hr]

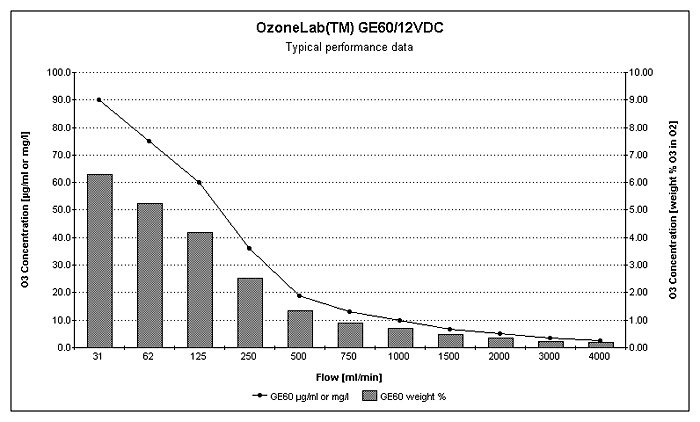

Ozone Concentration [µg/ml] versus Ozone Concentration [weight % 03 in 02]
