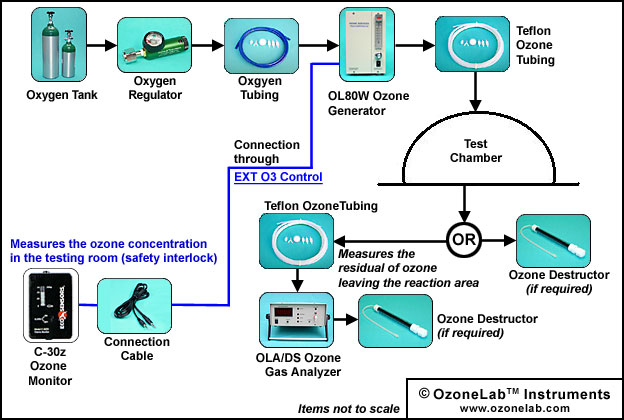

The below highlighted example is an attempt to try and allow clients to visualize a specific ozone generator application setup. This example represents one of many different possible applications.

A C-30z Ozone Monitor is connected using a connection cable to the EXT Signal Port in the Ozone Generator. This measures the ozone concentration in the testing room and works as a safety interlock.

Test Chamber using an OL80W Ozone Generator fed with an oxygen feed (Tank & Regulator). Ozone Test Chambers are a custom item and can be designed and produced through our Custom Design and Production area.

The OL80W is used as an example in this illustration. Ozone Generators are subject to the specific requirements of the client - please call or contact us to discuss which Ozone Generator is right for your needs.
