Spacer ImageOzoneLab™ OL80F/DST-2S Desktop Ozone Generator
     (90° panel series)
F.A.Q. TopicSetup ExampleSite SearchContact Us
Files ImageHome > Products > Generators > OL80F/DST-2S Desktop Ozone Generator (90° panel series)
Retired Design Area

As all OzoneLab™ ozone generators, OL80F/DST-2S unit is designed to work in conjunction with Oxygen Flow Regulators and/or Flow Mass Controllers supplying oxygen output in flow range zero to 1LPM. ((0.005ml/min) - 1000ml/min), and has a built-in ozone destructor.

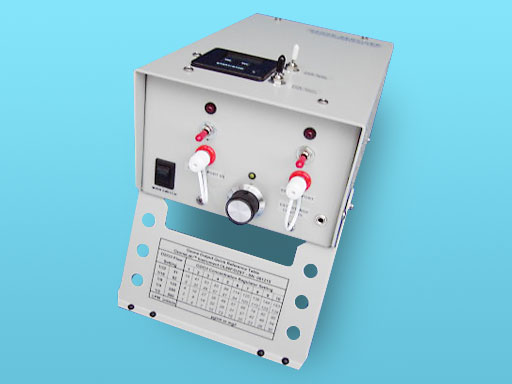

OL80F/DST-2S Front View

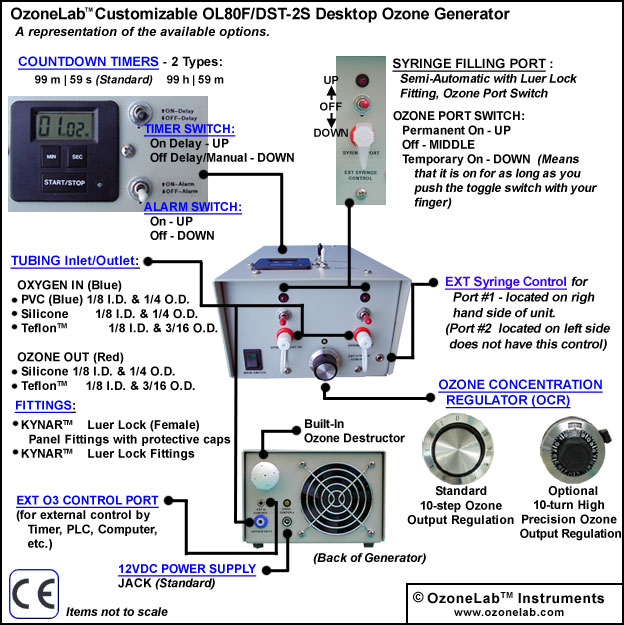

Customizable OL80F/DST-2S Desktop Ozone Generator Timer Switch Alarm Switch CE Marking EXT Syringe Control 12VDC Power Supply Tubing Inlet/Outlet EXT O3 Control Port Fittings Countdown Timers Ozone Concentration Regulator (OCR)

Pricing and model comparison chart

S = Standard | O = Optional | N/A = Not Applicable


OL80F/DST-2S
90° panel
Generator, Analyzer or Combination Generator
Only
Setup Example Available Yes
Model Picture OL80F/DST-2S Icon Image
OL80 Ozone Module (Single Stage) S
10-Step Ozone Output Regulation S
10-Turn High Resolution Ozone Output Regulation O
External Ozone Output Regulation
(EXT O3 Control Port)
S
Internal Ozone Destructor S
Semi-Automatic Syringe Adapter
with EXT Syringe Control Port
S
Countdown Timer & Buzzer S
Minimum & Maximum
Ozone Gas Flow Requirements
0.005 LPM
1.0 LPM
Luer Lock Kynar® Ozone Resist Fittings S
Desktop Enclosure with 90° front panel S
Folding Table for Desktop Enclosure
with 90° front panel
S

Instrument Weight

1.5kg/3.5Lb
Power Requirements 12VDC
0.7 Amp
100-240AC/12DC/4Amp Universal Adapter Included
CE Marking Marking Yes

OzoneLab™ OL80 (90° panel series) Technical Data:

Ozone Production
Stabilization Time:

  • 3 minutes to 90% of reference output is reached
  • 6 minutes to 100% of reference output is reached
  • after 10 minutes - 105% of reference output is reached

O2/O3 Ports: Kynar® (PVDF) Female Luer Lock
Gas Pressure: Standard Range 0-3 p.s.i.
Flow Range: Standard Range 31-1000ml/min || Extended range 5-1000ml/min (MAX)
Humidity: below 90% R.H.
Temperature: Standard range 16-26C || Extended Range 10-30C
Cooling: Air cooled instrument - 3" fan
Power: 12VDC/1500mA (100-240VAC/12VDC Power Adapter w/IEC320 receptacle is included)
Enclosure: Aluminum construction with laboratory grade heat tempered coating
Enclosure Size: 5.75 x 9.5 x 4.00" (WxHxD)
Weight: 1.5kg / 3.5Lb
Warranty: 12 months
Compliance: CE

For applications exceeding outlined conditions of operation, please contact us for more information on custom produced instruments and accessories.

Ozone Output Information

OL80 Module (Single Stage)
Typical Ozone Output for single stage OL80 Ozone Generator
Flow
LPM
Flow
ml/min
Output
µg/ml
Output
[mg/hr]
0 0 0 0
1/32 31 0 - 161 0 - 299
1/16 62 0 - 131 0 - 487
1/8 125 0 - 93 0 - 698
1/4 250 0 - 57 0 - 855
1/2 500 0 - 33 0 - 990
3/4 750 0 - 23 0 - 1035
1 1000 0 - 17 0 - 1020

  • OL80 Sample Output Test Report
  • OL80 Ozone Output Graphs

  • OL100 Typical Ozone Output Table
  • Compare OL80 & OL100
  • Compare OL80, OL100, and GE60 units produced between 1994 & 1999
  • How we test our Instruments
  • Note that we are able to provide Custom Ozone Output adjustments in the range of 10% - 100% of the Typical Ozone Output. Contact us for details.
  • Each ozone generator is tested and calibrated separately using 2" H2O back pressure.
  • OzoneLab™ instruments are designed for low flow/high output applications and are not suitable for flow rates above 1000ml/min due to the size of orifices in the ozone gas flow path. Gas Pressure is 0-3 p.s.i. (For applications dealing with higher pressures - please contact us for more info and/or consultation)

Gas Ports:

Oxygen INLET Port:

  • Color code:   Blue
  • Oxygen gas is supplied to Oxygen Inlet Port located at the back side of the ozone generator.
Ozone OUTLET Ports:
  • Color Code:   Red
  • Port #1 (right hand side)
    • Preferable choice for filling syringes (Syringe Filling Port)
    • Can be activated by corresponding Syringe Filling Switch or via EXT Syringe Control
  • Port #2 (left hand side)
    • Should be used for all secondary applications (water ozonation, etc.)
    • Can be activated only by corresponding Syringe Filling Switch
  • When neither Syringe Filling Port (#1 or #2) is active, the ozone gas is channeled directly to the Ozone Destructor.

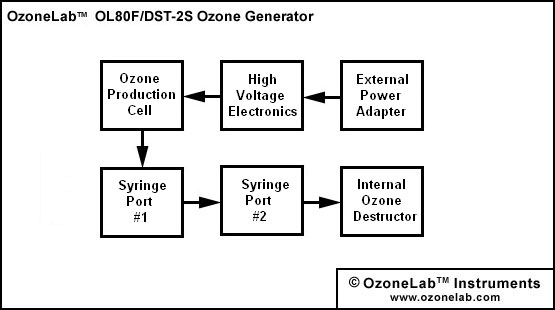

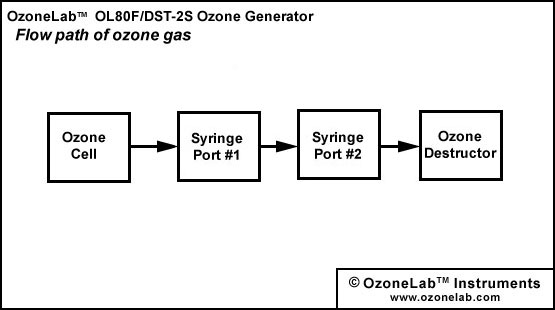

OL80F/DST-2S Flow Path

OL80F/DST-2S Power FLow

Built-in External Control Ports

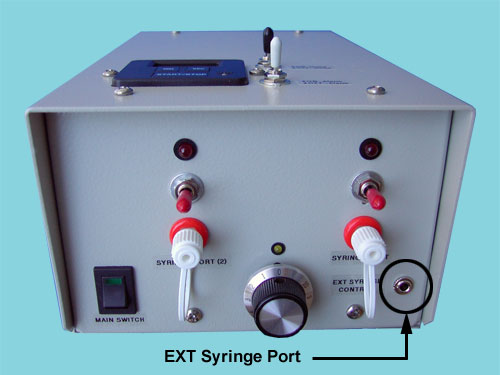

These pictures show the locations of the EXT Syringe Control Port and EXT O3 Control Port. Available options for these ports are available in our Accessories area.
