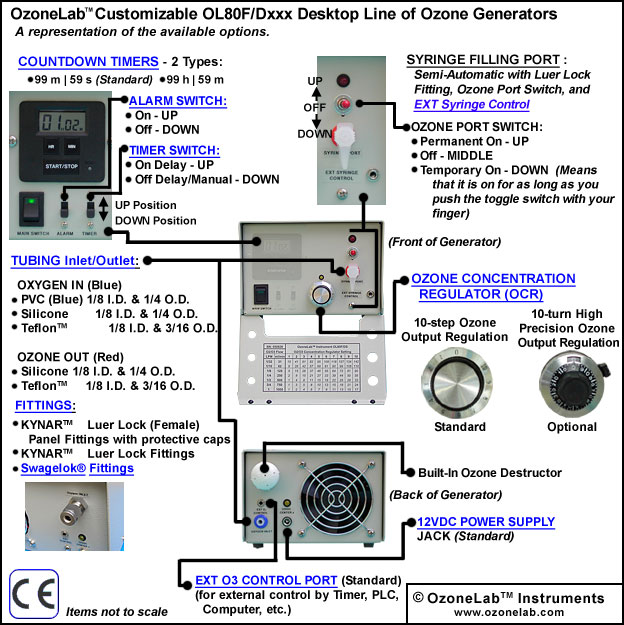

The OzoneLab™ OL80 Desktop Line (90° panel series) of Ozone Generators are designed specifically for laboratory and medical research applications. OzoneLab™ ozone generators are designed to work in conjunction with Oxygen Flow Regulators providing an output of between zero and 1LPM.

Pricing and model comparison chart

S = Standard | O = Optional | N/A = Not Applicable

OL80F/T Basic
90° panel
OL80F/T
90° panel
OL80F/DST
90° panel
OL80F/DSTR
90° panel
OL80F/DST-2S
90° panel
Setup Example Available Yes Yes Yes Yes Yes
Model Picture
OL80 Ozone Module (Single Stage) S S S S S
10-Step Ozone Output Regulation N/A S S N/A S
10-Turn High Resolution Ozone Output Regulation N/A  O O S  O
External Ozone Output Regulation
(EXT O3 Control Port)
S S S S S
Internal Ozone Destructor
(only available in conjunction
with Semi-Automatic Syringe
Adapter below)
N/A O S S S
Semi-Automatic Syringe Adapter
with EXT Syringe Control Port
N/A O S S S
Countdown Timer & Buzzer S S S S  S
(In Cover)
Minimum & Maximum
Ozone Gas Flow Requirements
0.005 LPM
1.0 LPM
0.005 LPM
1.0 LPM
0.005 LPM
1.0 LPM
0.005 LPM
1.0 LPM
0.005 LPM
1.0 LPM
Luer Lock Kynar® Ozone Resist Fittings S S S S S
Swagelok® Fittings
O
O
N/A
N/A
N/A
Desktop Enclosure with 90° front panel S S S S S
Folding Table for Desktop Enclosure
with 90° front panel
S S S S S

Instrument Weight

1.5kg/3.5Lb 1.5kg/3.5Lb 1.5kg/3.5Lb 1.5kg/3.5Lb 1.5kg/3.5Lb
Power Requirements 12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
12VDC
0.7 Amp
100-240AC/12DC/4Amp Universal Adapter Included Included Included Included Included
 Marking Yes Yes Yes Yes Yes

OzoneLab™ OL80 (90° panel series) Technical Data:
Ozone Production
Stabilization Time:

  • 3 minutes to 90% of reference output is reached
  • 6 minutes to 100% of reference output is reached
  • after 10 minutes - 105% of reference output is reached

O2/O3 Ports: Kynar® (PVDF) Female Luer Lock
Gas Pressure: Standard Range 0-3 p.s.i.
Flow Range: Standard Range 31-1000ml/min || Extended range 5-1000ml/min (MAX)
Humidity: below 90% R.H.
Temperature: Standard range 16-26C || Extended Range 10-30C
Cooling: Air cooled instrument - 3" fan
Power: 12VDC/1500mA (100-240VAC/12VDC Power Adapter w/IEC320 receptacle is included)
Enclosure: Aluminum construction with laboratory grade heat tempered coating
Enclosure Size: 5.75 x 9.5 x 4.00" (WxHxD)
Weight: 1.5kg / 3.5Lb
Warranty: 12 months
Compliance: CE

For applications exceeding outlined conditions of operation, please contact us for more information on custom produced instruments and accessories.

Ozone Output Information

OL80 Module (Single Stage)
Typical Ozone Output for single stage OL80 Ozone Generator
Flow
LPM
Flow
ml/min
Output
µg/ml
Output
[mg/hr]
0 0 0 0
1/32 31 0 - 161 0 - 299
1/16 62 0 - 131 0 - 487
1/8 125 0 - 93 0 - 698
1/4 250 0 - 57 0 - 855
1/2 500 0 - 33 0 - 990
3/4 750 0 - 23 0 - 1035
1 1000 0 - 17 0 - 1020

  • OL80 Sample Output Test Report
  • OL80 Ozone Output Graphs

  • OL100 Typical Ozone Output Table
  • Compare OL80 & OL100
  • Compare OL80, OL100, and GE60 units produced between 1994 & 1999
  • How we test our Instruments
  • Note that we are able to provide Custom Ozone Output adjustments in the range of 10% - 100% of the Typical Ozone Output. Contact us for details.
  • Each ozone generator is tested and calibrated separately using 2" H2O back pressure.
  • OzoneLab™ instruments are designed for low flow/high output applications and are not suitable for flow rates above 1000ml/min due to the size of orifices in the ozone gas flow path. Gas Pressure is 0-3 p.s.i. (For applications dealing with higher pressures - please contact us for more info and/or consultation)

Filling Syringes
Oxygen gas is supplied to a BLUE port. Syringes are filled using “Syringe Filling Port” (RED), which is activated by Syringe Port Switch.

When Syringe Filling Port is not active, the ozone gas is channeled directly to the Ozone Destructor.

When Syringe port is activated by the Syringe Port Switch or via EXT Syringe Signal Port, red LED light is flashing and ozone gas flow is re-directed from the built-in Ozone Destructor to the Syringe Filling Port.

Built-in External Control Ports
These pictures show the locations of the EXT Syringe Control Port and EXT O3 Control Port. Available options for these ports are available in our Accessories area.

EXT Syringe Port

EXT O3 Control Port

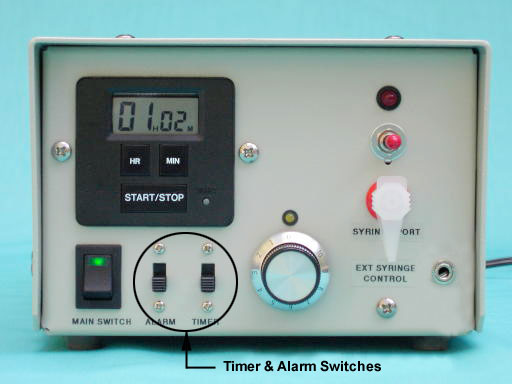

TIMER & ALARM Control Information

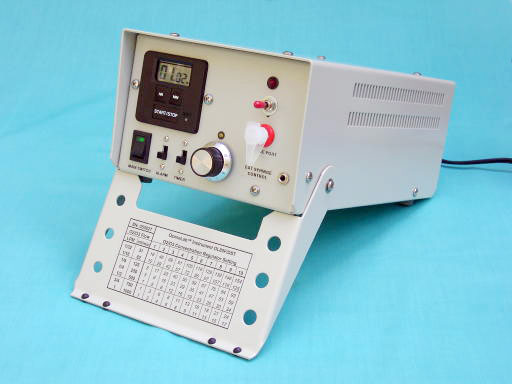

Folding table

Ozone Generator Setup Examples

OzoneLab™ Mobility offers clients options for mobile situations.

A full selection of optional ozone accessories is available to clients through our Ozone & UV Accessory Area.


Examples of External Ozone Production & Ozone Flow Control Devices

Foot Switch Control OLW - Transmitter Module C-30Z Ozone Monitor
Foot Switch Control  OLW - Transmitter Module C-30Z Ozone Monitor
